Description
- 2/5/8MP
- AI Deep Learning
- 0.005Lux Ultra Low-light
- Smart IR II with 50m IR Distance
- 60fps High Frame Rate
- IP67
- Versatile Interfaces (Optional)
Specifications
- MS-C2963-R(T)PE
- MS-C2963-PD
| Camera | |
|---|---|

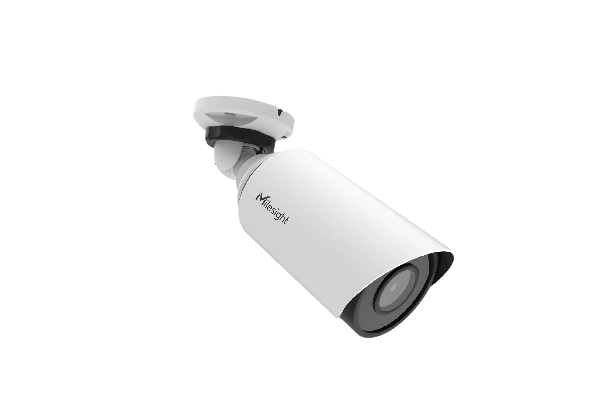

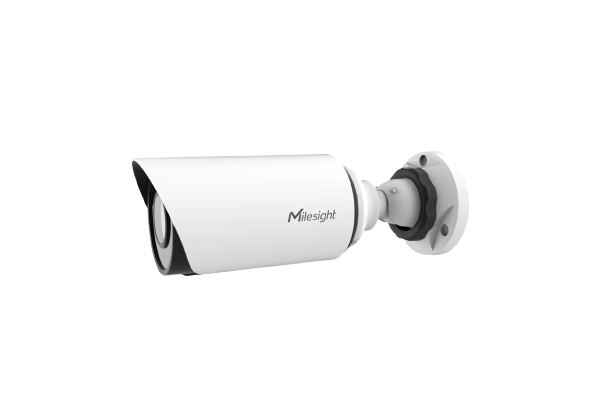

| Name | AI Weather-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | 4mm/2.8mm/6mm@F1.6 |
| Mount | M12 |
| Field of View | H91°/D106°/V50°(4mm) H111°/D128°/V61°(2.8mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 42m O: 16m R: 8.5m l: 4.5m (2.8mm) D: 51.5m O: 20m R: 10.5m l: 5.5m (4mm) D: 72m O: 33m R: 16.5m l: 8.5m (6mm) |
| IR Distance | Up to 50m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920×1080 |
| Primary Stream | 60Hz: 90fps@(1920×1080)(Optional for T Series), 60fps@(1920×1080, 1280×960, 1280×720, 704×576) 50Hz: 90fps@(1920×1080)(Optional for T Series), 50fps@(1920×1080, 1280×960, 1280×720, 704×576) |
| Secondary Stream | 60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240) 50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240) |
| Tertiary Stream | 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240) 50Hz: 25fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Optional, Only for Multi-interface Version) |
| Alarm I/O | 1/1 (Optional, Only for Multi-interface Version) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, etc.; Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm, etc. (Multi-interface Version) |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, HTTP Notification, etc.; FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. (Multi-interface Version) |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | Min.: 2.5W (DC 12V), 3.2W(PoE) |
| Max.: 7.3W (DC 12V), 9W(PoE) | |
| Weight | Approx. 750g |
| Dimensions | Φ76mmX214.5mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
