Description
- Intelligent AI-powered LPR Algorithm
- Black & White List and No-plate Vehicle Detection
- Evidence Camera Linkage
- LPR Smart Search
- 140dB Super WDR
- Smart IR II Technology
- IP67 & IK10 Full Protection
- Versatile Interfaces
Specifications
- MS-C2964-RFLPE
| Camera | |
|---|---|

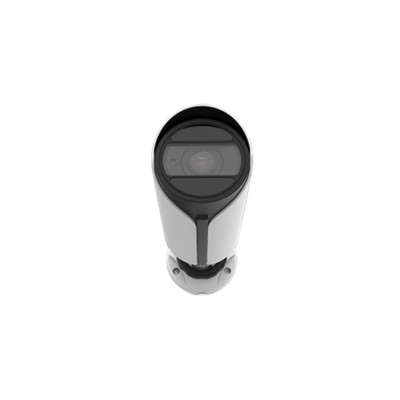

| Name | Entrance & Exit AI LPR Bullet Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Illumination Distance | Up to 20m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H111°~H34°/D130°~D39°/V60°~V19° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 30km/h |
| Recognition Accuracy | >98% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 15m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Video | |
| Max. Image Resolution | 1920×1080 |
| Primary Stream | 60Hz: 60fps@(1920×1080, 1280×960, 1280×720, 704×576) 50Hz: 50fps@(1920×1080, 1280×960, 1280×720, 704×576) |
| Secondary Stream | 60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240) 50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240) |
| Tertiary Stream | 60Hz: 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240) 50Hz: 25fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | Min.: 2.44W (DC 12V), 3.36W(PoE) Max.: 8.6W (DC 12V), 10.6W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 825g |
| Dimensions | Φ76mmX239.5mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
